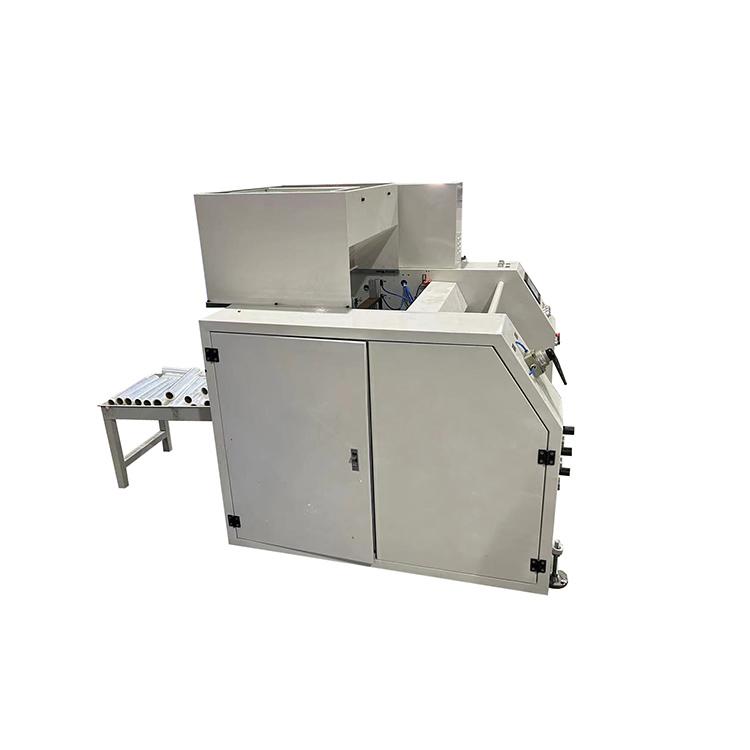

Automatic 5 shaft food curly edge cling wrap perforation rewinder with full servo-controlled is our latest design for 5 shaft rewinding of cling film roll with the end of roll curl.
Machine adopts full servo control,5 shaft exchange,infinitely improves the working efficiency.
It works with touch screen and PLC control,together with inverter control for simple operation.


Features:
1.Full servo controlled,high efficient,design rewinding speed max650m/min.
2.Automatic perforation function,the product roll is with easy tear off.
3. The end of roll is with curl.

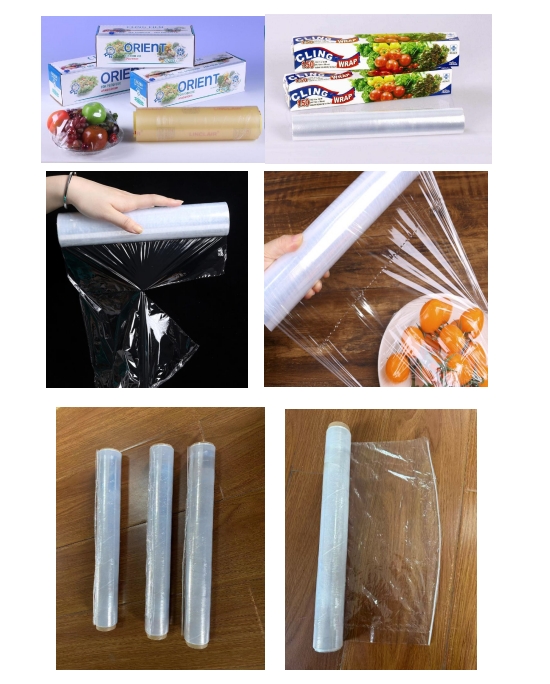

4.Suitable film:PVC cling film,PE cling film,food PE stretch film etc.


Main Data:

Name:Automatic 5 Shaft Curly Edge Food Cling Wrap

Perforation Rewinder With Full Servo-Controlled

Model:PPD-5SCPR300

Mother roll width:300mm

Mother roll ID:76mm

Mother roll outer diameter:max400mm

Rewind roll width:300mm

Rewind roll inner diameter:30/35/38mm option

Rewind roll length:max150m

Design rewinding speed:max600m/min

Voltage:220/380/415V,50Hz (option)
