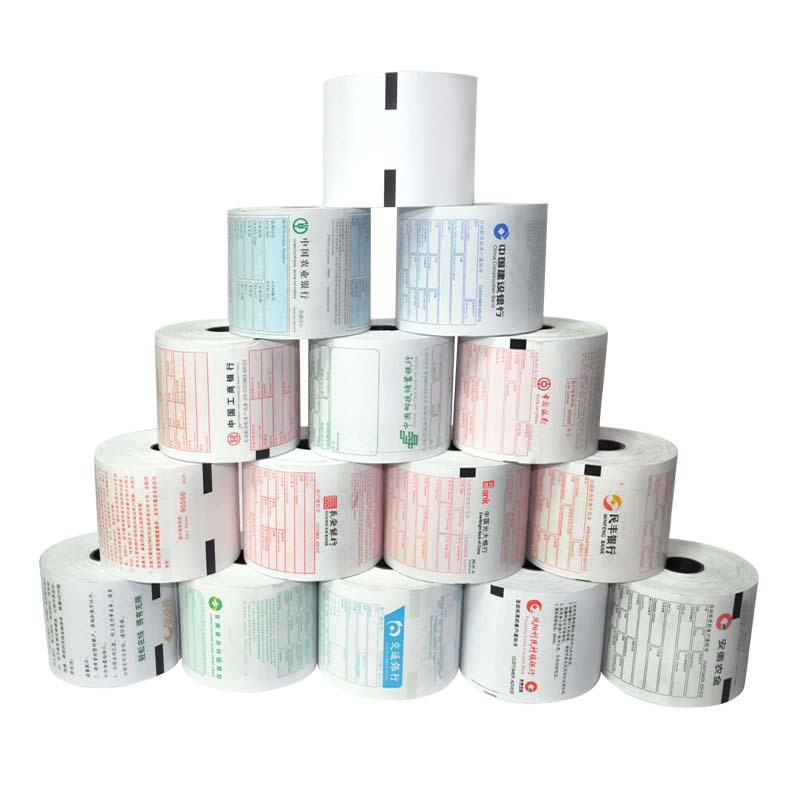

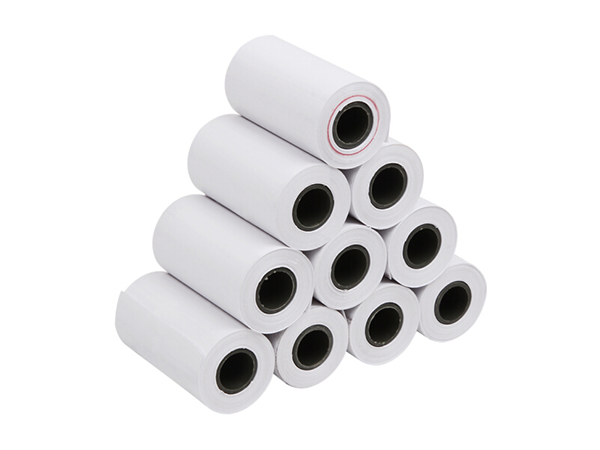

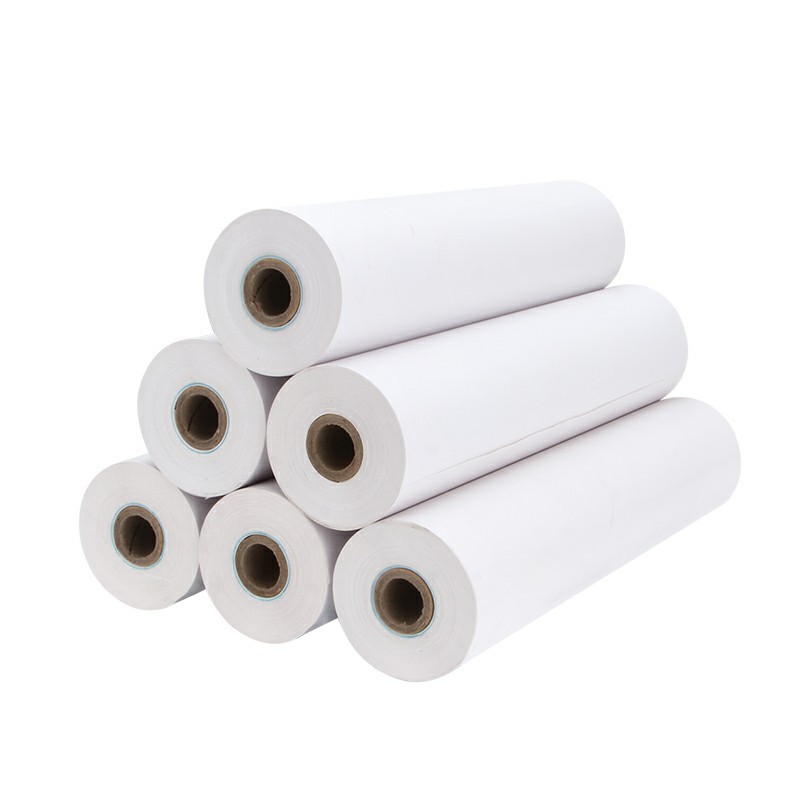

Cash register paper roll slitter with auto cutting&gluing is mainly suitable for slitting all kinds of thermal paper,bond paper,cash register paper,fax paper,POS paper, ATM paper, matte couche, paper semi-gloss paper, thermal transfer paper,direct thermal paper,metallized paper,cardboard paper,thermal cardboard, and other small ribbon roll.

Features:
1.Auto tension control system for unwinding tension.
2.With meter counter. Got to the setup data, the machine stops.
3.It adopts Synchronic Belt to avoid the over lap problem.
4.Automatic tail cutting&automatic gluing device, which can save the labor and increase the productivity.
5.Machine equipped with PLC and touch screen, all the parameter are displayed on the monitor.

Main Data：

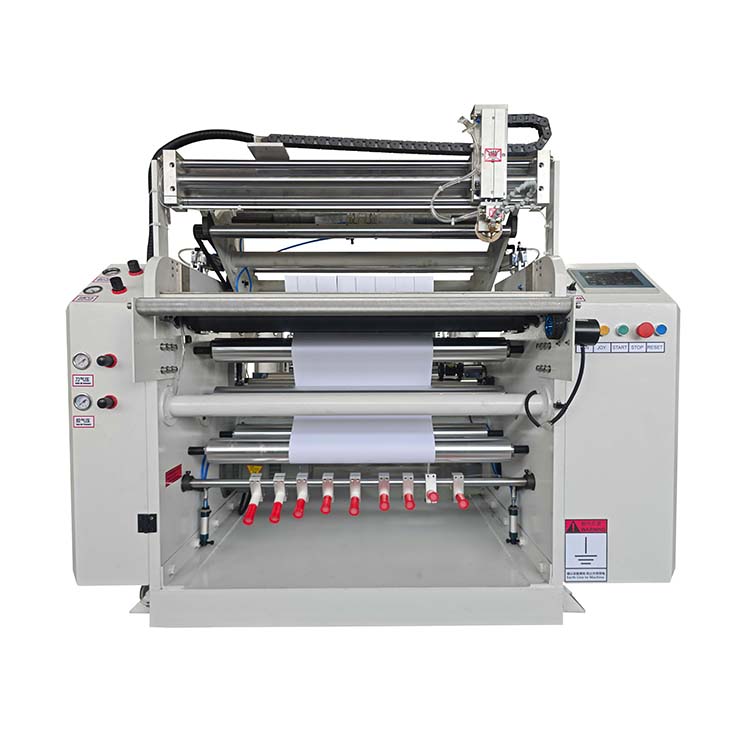

Name:Cash Register Paper Roll Slitter With Auto Cutting&Gluing

Model:PPD-ACG900

Parent web width:max900mm

Parent web ID:76mm

Parent web OD:max1000mm

Slitting rewinding width:57mm,80mm or as request

Slitting rewinding ID:12.7mm/15mm or as request

Slitting rewinding OD:max160mm

Speed:0-168m/min

Voltage:380V,50Hz
