Automatic cling film roll rewinder curly edge is customized model for rewinding of PE cling film rolls,PVC cling film rolls,food PE stretch film rolls with the end of roll curl.
It works with single shaft rewinding,auto exchange the shaft,auto paper core loading,auto product deliver the final product to receving table.

Features:
1. PLC + touch screen + frequency converter control system, easy to operate.
2. Machine will be automatic stopped once reach the setting length.

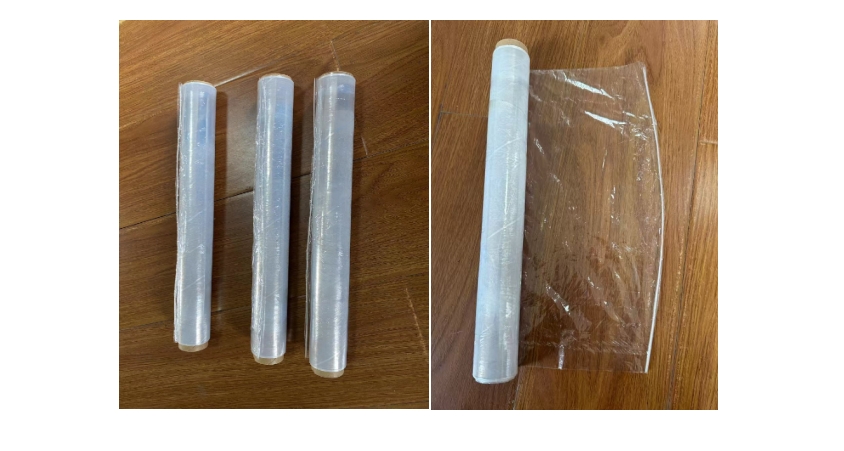

3.The final product roll is with curly edge for easy peeling.




Main Data:

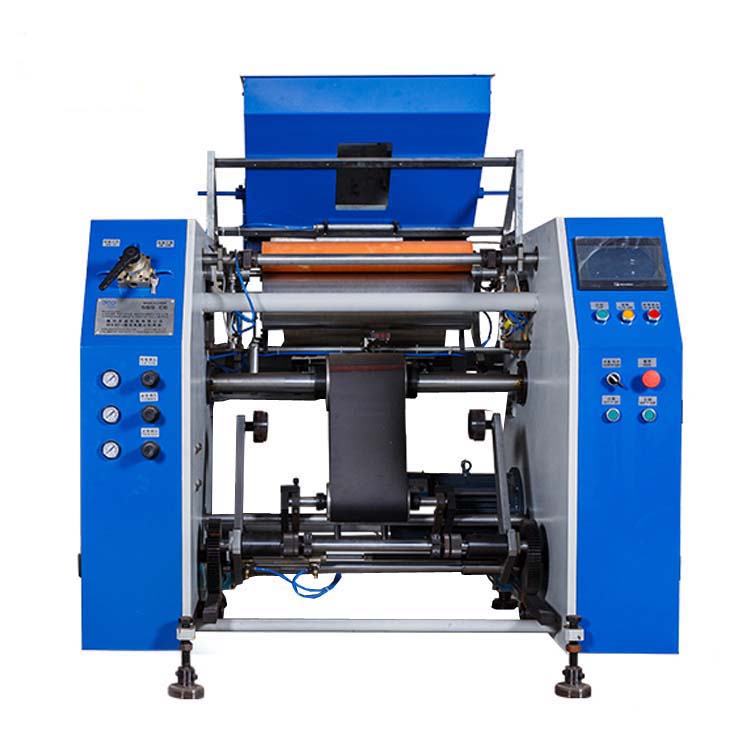

Name:Automatic Cling Film Roll Rewinder Curly Edge

Model:PPD-ACW300CE

Material PE cling film,PVC cling film,food PE stretch film

Jumbo roll width:300mm

Jumbo roll OD:max400mm

Jumbo roll ID:76mm

Rewind roll width:max300mm

Rewind roll ID:30/35/38/40mm option

Rewind roll OD:150mm

Speed:0-900m/min,max6rolls(30m/roll)/min

Voltage:220/350/415V,50Hz

Power:4kw
