Single color aluminum foil printing machine is designed for single-color printing on aluminum foil and film rolls. It utilizes the flexographic printing process, transferring ink via a metal anilox roller and imprinting the design onto the aluminum foil surface through the elastic contact of the printing plate's image areas. It is commonly used to print logos, text, and simple patterns on materials such as aluminum foil for food and pharmaceutical packaging, aluminum foil composite film and aluminum foil paper etc.

Features:
1. Unwinding unit with edge-guiding system, magnetic powder tension control, and 3-inch air shaft;
Unwinding roll outer diameter: 450mm.
2. Rewinding unit with magnetic powder automatic tension control and 3-inch air shaft;
Rewinding roll outer diameter: 450mm.
3. Ceramic anilox roller with doctor blade.
4. Enclosed drying oven with adjustable temperature.
5. PLC and touchscreen control system; automatic stop upon material breakage; integrated counter.

Main Data:

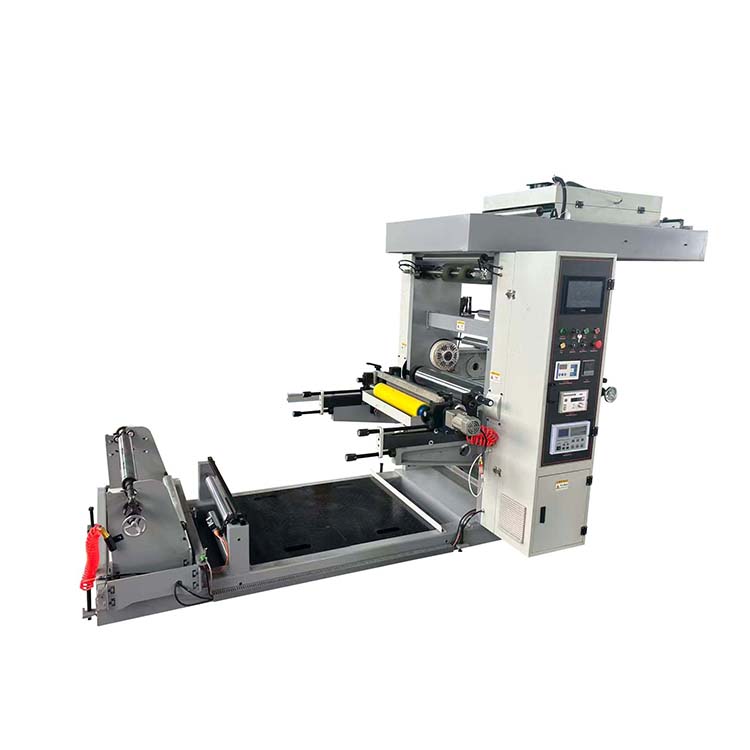

Name: Single Color Aluminum Foil Printing Machine

Model: PPD-AFFP600

Printing color: 1 color

Max. printing width: 560mm

Max. printing length: 220–910mm

Plate thickness (including double-sided tape): 2.38mm

Printing speed: 5–80m/min

Total power: 8kw

Voltage: 220V,3PH,50Hz
